Din Panel Cases 96x96 mm (Ventila Series)

Manufacturer of ABS Plastic Din Panel Cases 96x96 mm meter enclosures. Ventila Series with accessories like front plate, back plate, base plate, angles poles and mounting clamps. Accumulation of heat in a case is potentially damaging - Ventila cases designed for free flow of air.

PCB Size: 96x96 mm (Cut-out: 92x92 mm)Sizes: 96x96x110 mm, 96x96x85 mm, 96x96x65 mm, 96x96x45 mmMaterials: ABS Plastic (Black colour)

Key Features

  • With/without ventilation
  • Flush mounting on DIN panels
  • Cutouts for trim-pot, cermet, DIP switch, USB, JTAG, tact switch
  • 0.3 mm depth at four sides for sticker protection

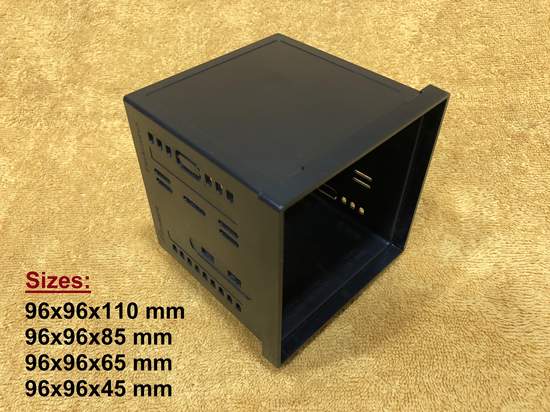

Din Panel Box Size 96x96x110, 96x96x85, 96x96x65 and 96x96x45 mm

All enclosure sizes

Model: Ventila Series

Drawing 96x96x110mmDrawing 96x96x85mmDrawing 96x96x65mmDrawing 96x96x45mmDownload PDF of Front Plates

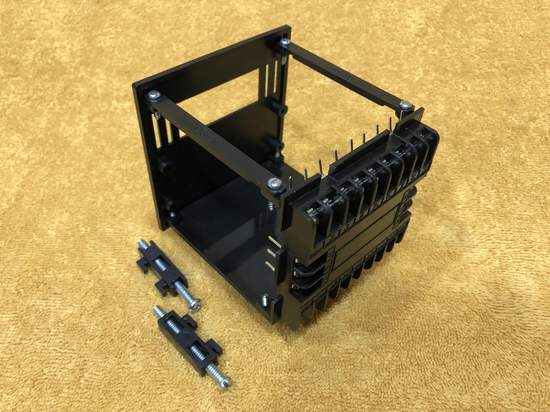

Assembly of 96x96 Enclosure with a base plate and 2 angles

Complete assembly

Model: Complete Assembly

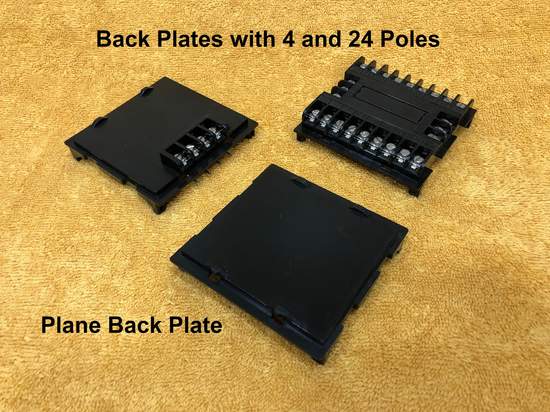

Three types of Back Plates

RP-99P, B9-24, B9-04

Model: Back Plates

Front Plate Close Type

FV-99 C

Model: FV-99 C

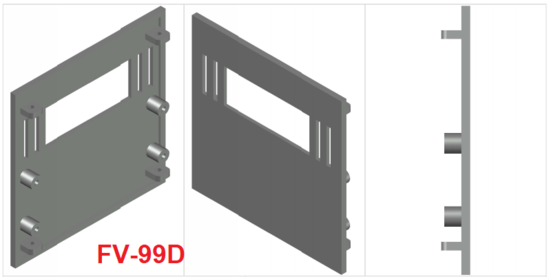

Front Plate with Display Cutout

FV-99 D

Model: FV-99 D

Front Plate with Single Display Cutout and 3 Key Holes

Single display + 3 keys (MOQ 300)

Model: Custom Single Display

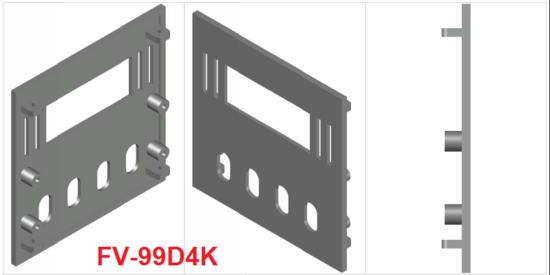

Front Plate with Single Display Cutout and 4 Key Holes

Single display + 4 keys (MOQ 300)

Model: Custom Single Display

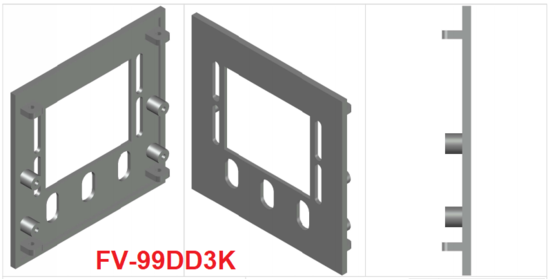

Front Plate with Double Display Cutout and 3 Key Holes

Double display + 3 keys (MOQ 300)

Model: Custom Double Display

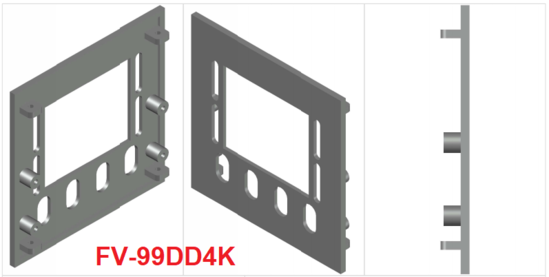

Front Plate with Double Display Cutout and 4 Key Holes

Double display + 4 keys (MOQ 300)

Model: Custom Double Display
