DIN Rail & Wall Mount Enclosures (EL Series)
EL Series enclosures are molded in white ABS plastic and are suitable for 35 mm DIN rail as well as wall mounting using an additional clamp. They support 30A PCB-solderable brass poles, include dummy blocks for unused terminals, and feature a clear polycarbonate DIN rail clamp. Designed to house protection relays, controllers, and automation modules.

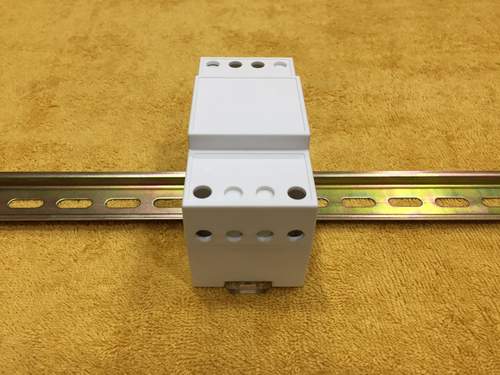

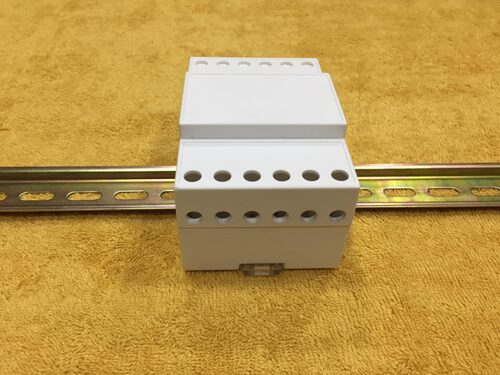

Sizes: 105 x 47 mm PCB (8 poles, top & bottom), 100 x 42 mm PCB (8 poles, bottom), 105 x 70 mm PCB (12 poles, top & bottom), 100 x 65 mm PCB (12 poles, bottom)Materials: ABS Plastic (White), Polycarbonate (Clear)
Key Features
- 35 mm DIN rail mounting
- Wall mounting with additional clamp
- 30A PCB-solderable brass poles
- Dummy blocks for empty terminal spaces
- Supports 8-pole and 12-pole configurations
- Suitable for relays and control modules

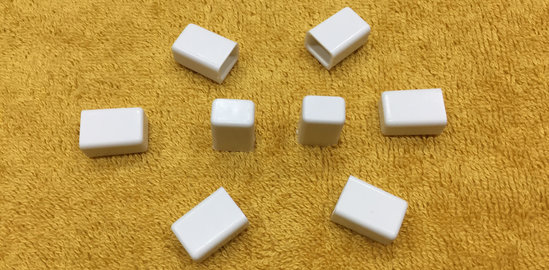

Dummy block to fill empty terminal space (DT-02)
Model: DT-02

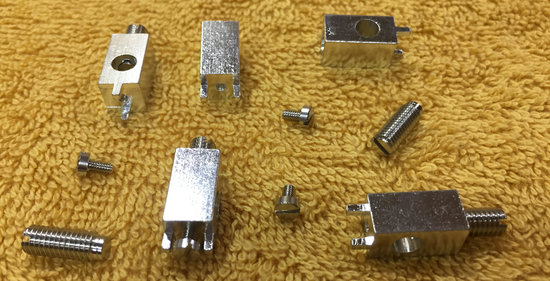

30 Amp Pole with brass screws (P-30A-BR)
Model: P-30A-BR
