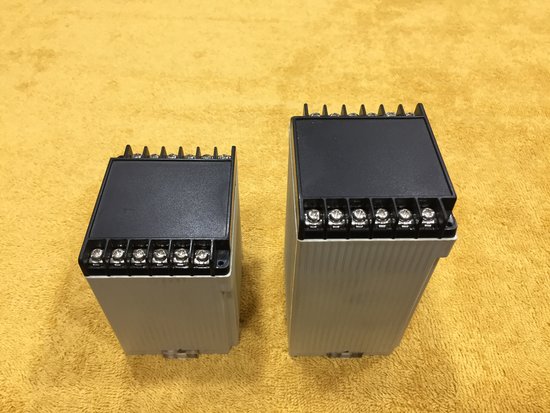

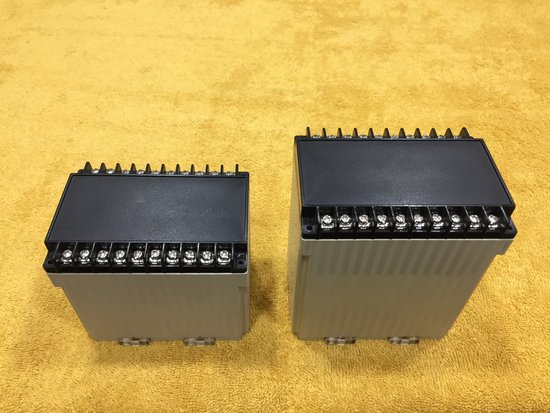

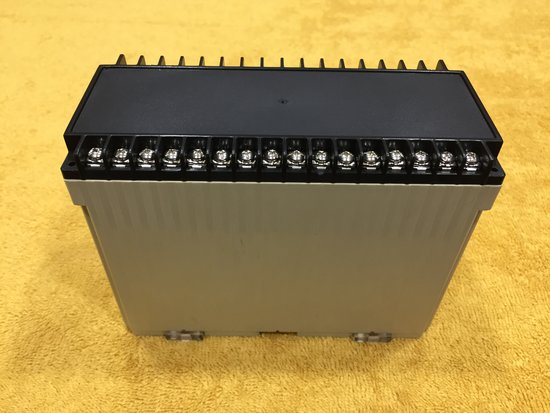

DIN Rail Mounting Enclosures (Linea Series)
Linea Series DIN rail mounting enclosures are designed to house electronic instruments for measurement, control, and instrumentation applications. They mount on standard 35 mm DIN rails and offer maximum internal space with rear ventilation for reliable operation.
Sizes: 8 poles, 10 poles, 12 poles, 16 poles, 20 poles, 32 polesMaterials: ABS Plastic, Brass (Copper + Nickel + Tin plated), Mild Steel / Brass (Nickel plated), Polycarbonate (Clear)
Key Features
- 35 mm DIN rail mounting (EN 50022)
- Maximum internal usable space
- Rear air ventilation slots
- Built-in PCB guides
- Front panel supports direct PCB soldering
- Clear polycarbonate DIN rail clamp
Video of Din Rail Enclosure (Linea Series)
Video of Din Rail Enclosure (EC-7522)
Din Rail mounting Enclosures (Linea Series)
Assembly of din rail enclosures (linea series)
