Din Panel Cases 72x72 mm (Ventila Series)

Manufacturer of ABS Plastic Din Panel Cases 72x72 mm meter enclosures. Ventila Series with accessories like front plate, back plate, base plate, angles poles and mounting clamps. Accumulation of heat in a case is potentially damaging - Ventila cases designed for free flow of air.

PCB Size: 72x72 mm (Cut-out: 68x68 mm)Sizes: 72x72x85 mm, 72x72x65 mm, 72x72x45 mmMaterials: ABS Plastic (Black colour)

Key Features

  • With/without ventilation
  • Flush mounting on DIN panels
  • Cutouts for trim-pot, cermet, DIP switch, USB, JTAG, tact switch
  • 0.3 mm depth at four sides for sticker protection

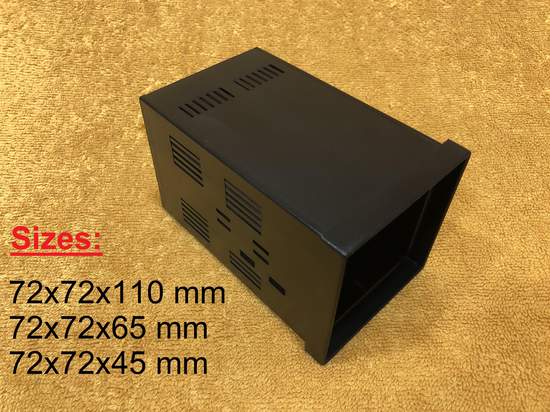

Din Panel Box Size 72x72x110, 72x72x65 and 72x72x45 mm

All 72x72 enclosure sizes

Model: Ventila Series

Drawing 72x72x85mmDrawing 72x72x65mmDrawing 72x72x45mm

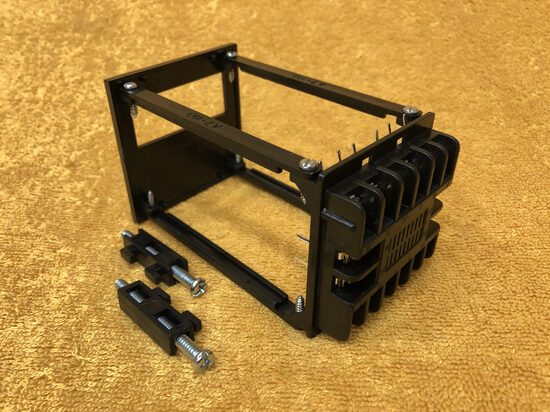

Assembly of 72x72 Enclosure with 4 angles

Complete 72x72 assembly

Model: Complete Assembly

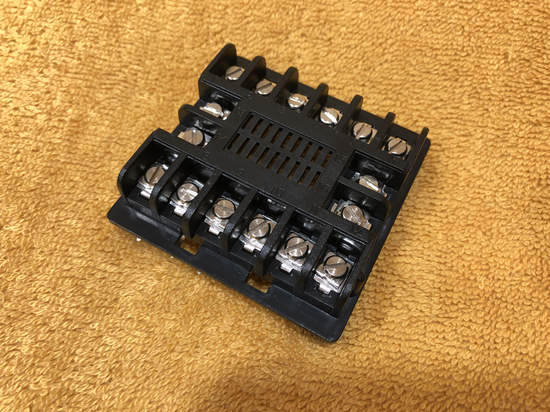

Back Plate with 16 Poles

RP-72P, B7-16, B7-04 back plates

Model: Back Plates

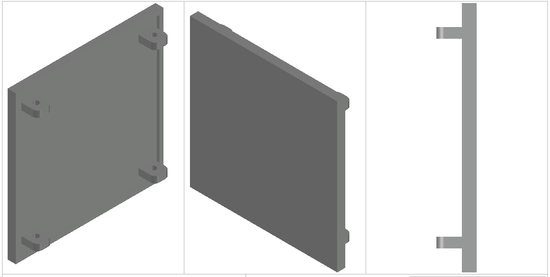

Front Plate Close Type

FV-72 C

Model: FV-72 C

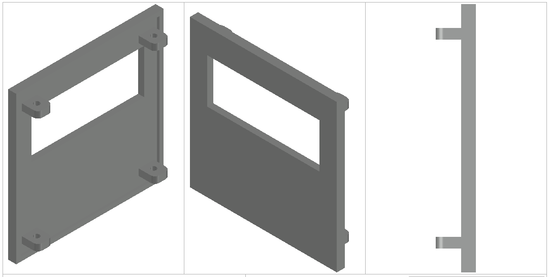

Front Plate with Display Cutout

FV-72 D

Model: FV-72 D
