Din Panel Cases 48x96 mm (Ventila Series)

Manufacturer of Din Panel Cases 48x96 mm, Ventila Series with accessories like front plate, back plate, base plate, angles poles and mounting clamps. Accumulation of heat in a case is potentially damaging to electrical and electronic instruments. Ventura series of cases are designed for free flow of air inside the cases so that the components are protected from overheating.

PCB Size: 48x96 mm (Cut-out: 45x92 mm)Sizes: 48x96x110 mm, 48x96x65 mm, 48x96x45 mmMaterials: ABS Plastic (Black colour)

Key Features

  • With/without ventilation
  • Flush mounting on DIN panels
  • Accessories: angles, base plates, panel mounting clamps, front plates and back plates
  • Ventura cases available with/without ventilation

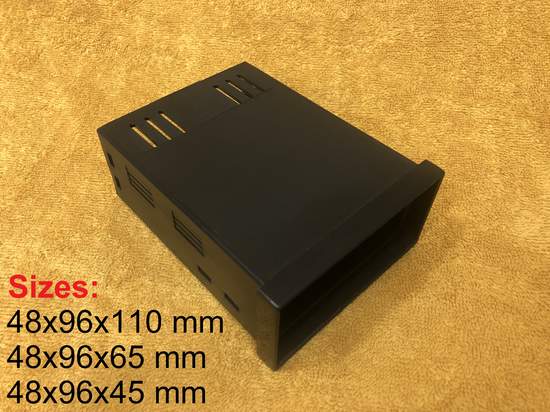

Din Panel Box Size 48x96x110, 48x96x65 and 48x96x45 mm

All 48x96 enclosure sizes

Model: Ventila Series

Drawing 48x96x110mmDrawing 48x96x65mmDrawing 48x96x45mm

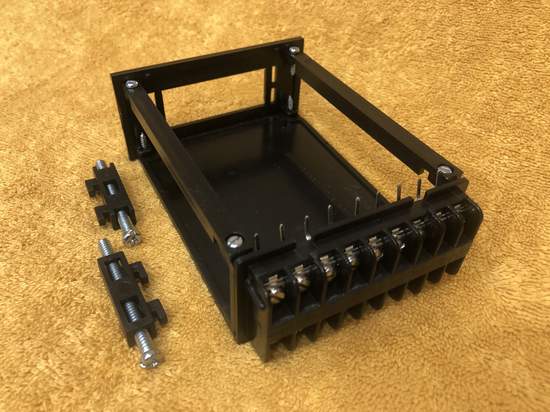

Assembly of 48x96 Enclosure with Base Plate and 2 angles

Complete 48x96 assembly

Model: Complete Assembly

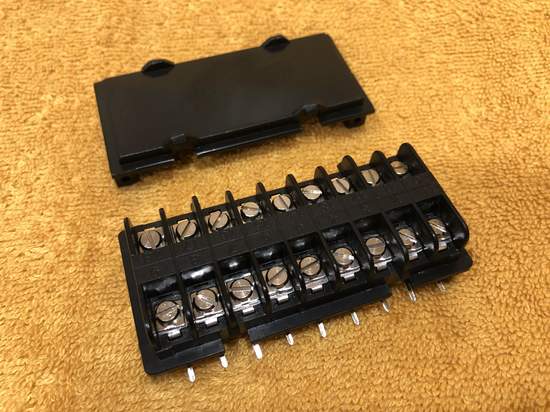

Plane Back Plate and Back Plate with 18 Poles

Back plates B49-18

Model: B49-18

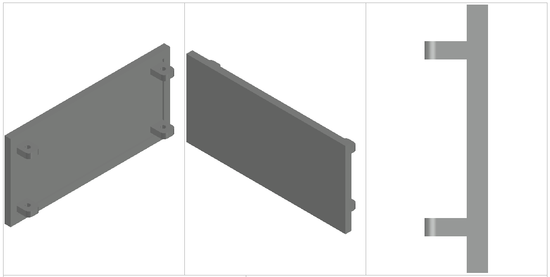

Front Plate Close Type (FP-77C)

FP-77C close type

Model: FP-77C

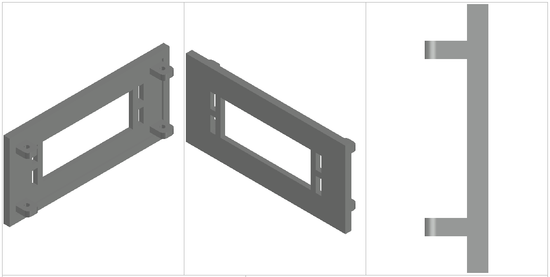

Front Plate with Display Cutout (FP-77D)

FP-77D display cutout

Model: FP-77D
